Display

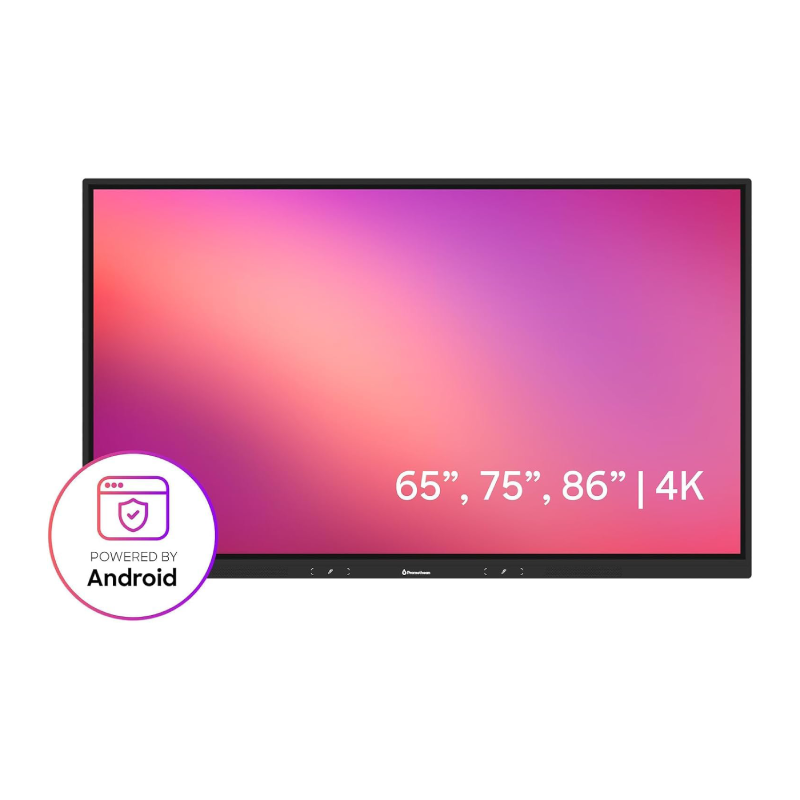

- Screen Size and Resolution: 65" 4K; UHD (3840 x 2160 @ 60 Hz), 75" 4K; UHD (3840 x 2160 @ 60 Hz), 86" 4K; UHD (3840 x 2160 @ 60 Hz)
- Backlight Technology: Direct LED Backlight
- Screen Type: TFT LCD
- Blue Light Reduction: Yes
- Bonded Glass: Yes
- Aspect Ratio: 16:9
- Display Area: 65": 1431 x 807 mm (56.3 x 31.8 in), 75": 1653 x 931 mm (65.1 x 36.7 in), 86": 1898 x 1069 mm (74.7 x 42.1 in)
- Display Colors: 1.07 Billion (10-bit)
- LCD Viewing Angle: 178°
- LCD Response Time: ≤ 6.5 ms
- LCD Refresh Rate (Panel): 60 Hz
- LED Lifespan: 50,000 hours
- Contrast Ratio: 5000:1 Dynamic 1200:1 Static
- Brightness: 400 cd/m²
- Ambient Light Sensor: Yes
- Glass Hardness: 9H (pencil), 7 (Mohs)
- Glass Type: Heat tempered
- Glass Thickness: 3 mm
- Glass Coating: Anti-Glare
- Operating System: Android 14
- RAM: 8 GB
- Internal Storage: 64 GB
- CPU: A72 x 4 + A53 x 4, 1.8 GHz
- GPU: ARM Mali-G52 MC3
- Trusted Platform Module: Yes
- Local Multi-user Profiles: Yes
- Dual Front-facing Speakers: 2 x 20 W (RMS)
- OTA Updates: Yes
- Vellum Touch Technology: Yes
- Continuous Touch Points: Up to 40
- Touch Resolution: 32768 x 32768 px
- Touch Response Time: ≤ 6 ms
- Touch Accuracy: 1 mm
- Scan Rate: Up to 200 Hz
- Gesture and Edge Swipes: Windows® supported
- Unique Pen IDs: 2
- Pen and Touch Differentiation: Yes
- Palm Erase: Yes
- Palm Rejection: Yes
- Writing-hand Palm Rejection: Yes

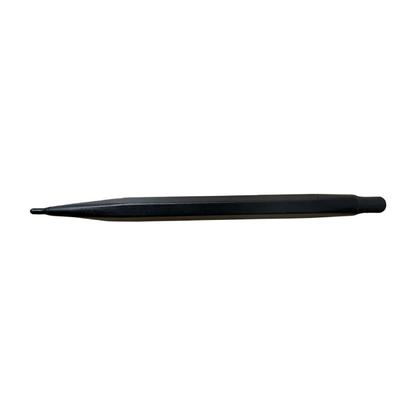

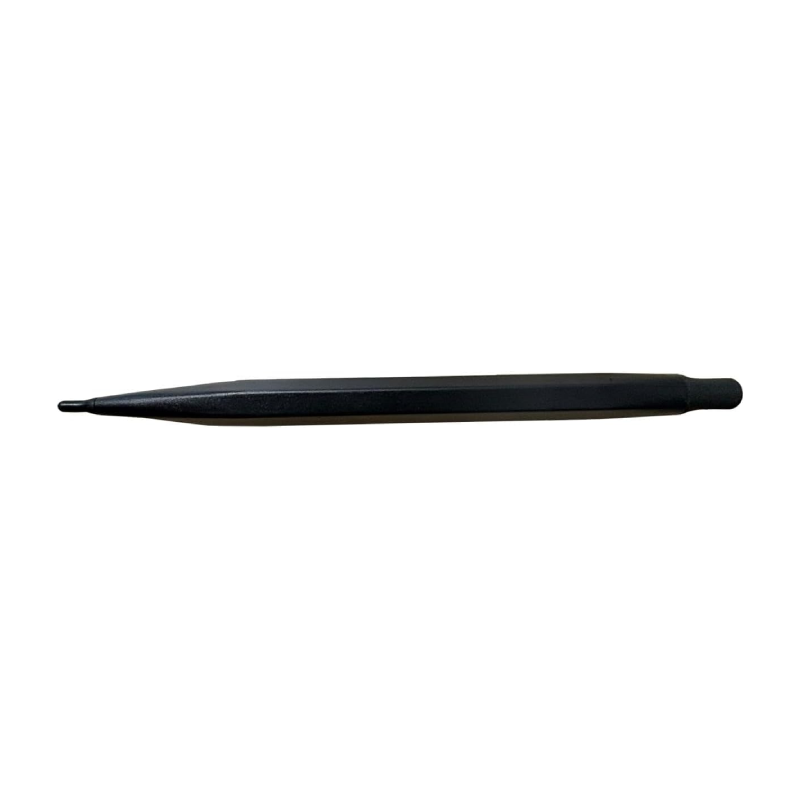

- Pens Included: 2 x Passive battery-less pens
- Pen Holder: Magnetic
- Pen Tip Diameter: 3 mm
- Pen Eraser Diameter: 8 mm
- Classroom Essential Apps: Including Explain Everything Whiteboard, Annotate, Timer, Spinner, Screen Capture, Screen Share Receiver
- Compatibility: Windows® 10 and 11; macOS® Ventura 13 and Sonoma 14; Linux® Ubuntu 22.04 to 24.04 LTS;
ChromeOS™
- OPS Slot: 1
- HDMI In (Rear): 2 x 2.1 (HDCP 1.4 & 2.3 [HDMI1 ARC and CEC/HDMI 2 CEC])
- HDMI In (Front): 1 x 2.1 (HDCP 1.4 & 2.3)
- HDMI Out (Rear): 1 x 2.1
- Display Port (Rear): 1 x 1.4
- USB-A (Rear): 1 x 2.0
- USB-A (Rear): 2 x 3.2 Gen 1
- USB-A (Front): 2 x 3.2 Gen 1
- USB-B (Touch, Front): 1 x 2.0
- USB-B (Touch, Rear): 2 x 2.0
- USB-C (Front): 1 x 3.2 Gen 1
- USB-C (Rear): 1 x 3.2 Gen 1, DP ALT Mode (HDCP 1.4 & 2.3), 65 W Power Delivery
- USB-C Out (Rear): 1 x 3.2 Gen 1 (HDCP 1.4 & 2.3)
- MicroSD Slot: Yes
- LAN In (RJ45): 10/100/1000
- LAN Out (RJ45): 10/100/1000
- Wake-on-LAN: Yes
- Wi-Fi (Client): 6
- Bluetooth: 5.2
- Mic In (3.5 mm): 1
- Audio Out (3.5 mm): 1
- SPDIF-Out: 1
- RS232: 1
- Power Requirements: 100 V - 240 V AC
- Max. Energy Star Reported Luminance 400 cd/m²: 65": 65 W, 75": 71 W, 86": 92 W
- Power Consumption (Standby): <= 0.5 W
- Ultra-Quiet Fanless Design: Yes
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: -15 °C to 55 °C (-5 °F to 131 °F)
- Operating Humidity: 20% to 80% non-condensing humidity
- Storage Humidity: 20% to 90% non-condensing humidity
- Regulatory Certifications: CE, FCC, IC, UL, CUL, CB
- Energy Star Certified: Yes
- Trade Agreements Act (TAA) Compliance: Yes
- TUV Blue Light Certified: Yes
- EDLA Certified: Yes
- Panel Dimensions: 65": 1487 x 897 x 88 mm (58.6 x 35.3 x 3.5 in), 75": 1709 x 1022 x 88 mm (67.3 x 40.2 x 3.5 in), 86": 1954 x 1159 x 88 mm (76.9 x 45.6 x 3.5 in)
- Panel Net Weight: 65": 32 kg (70.5 lb), 75": 43.4 kg (95.7 lb), 86": 56.8 kg (125.2 lb)
- VESA Mount Point: 65": 600 x 400 mm (23.6 x 15.7 in), 75": 800 x 400 mm (31.5 x 15.7 in), 86": 800 x 600 mm (31.5 x 23.6 in)
