| Specifications | |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | Micro ATX |
| Socket | AMD AM4 |
| Chipset | AMD A520 |
| RAM Technology | DDR4 (Dual Channel) |
| RAM Slots | 2 x DIMM |
| RAM Speeds | 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz |
| Maximum Memory | 64GB |
| CPU Support | Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors, 6 Power Phase design |
| Graphics | Integrated Graphics Processor(Graphics specifications may vary between CPU types) |
| Graphics Ports | 1 x VGA, 1 x HDMI |
| PCI/PCI Express | 1 x PCIe 3.0 x16 Slot (PCIE2: x16 mode), 1 x PCIe 3.0 x1 |
| Storage | 4 x SATA III, 1 x M.2 (2242/2260/2280) - SATA & PCIe |
| RAID | RAID 0, 1, 10 |
| LAN | GB LAN |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) |
| USB Ports Supported | 6 x USB 3.2 Gen1 (4 at back, 2 at mid-board), 6 x USB 2.0 (2 at back, 4 at mid-board) |

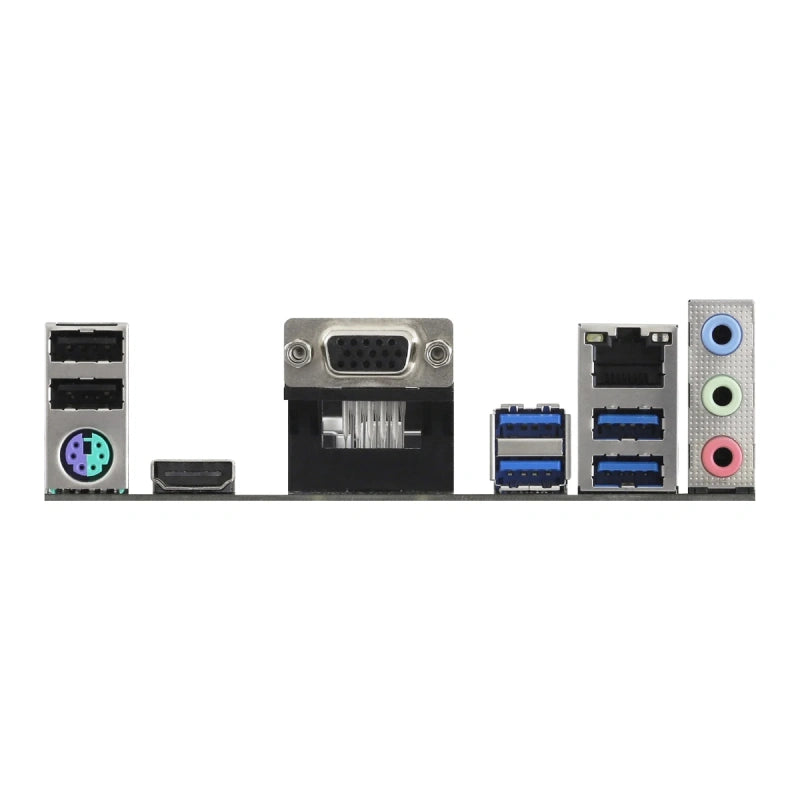

| Back Panel I/O Ports | 1 x PS/2 Mouse/Keyboard, 1 x D-Sub, 1 x HDMI, 2 x USB 2.0, 4 x USB 3.2 Gen1, 1 x RJ-45 LAN, HD Audio Jacks |
| Internal I/O Connectors | 1 x SPI TPM, 1 x COM Port, 1 x Chassis Intrusion and Speaker, 1 x CPU Fan, 2 x Chassis Fan, 1 x 24 pin ATX, 1 x 4 pin 12V, 1 x Front Audio, 2 x USB 2.0, 1 x USB 3.2 Gen1 |

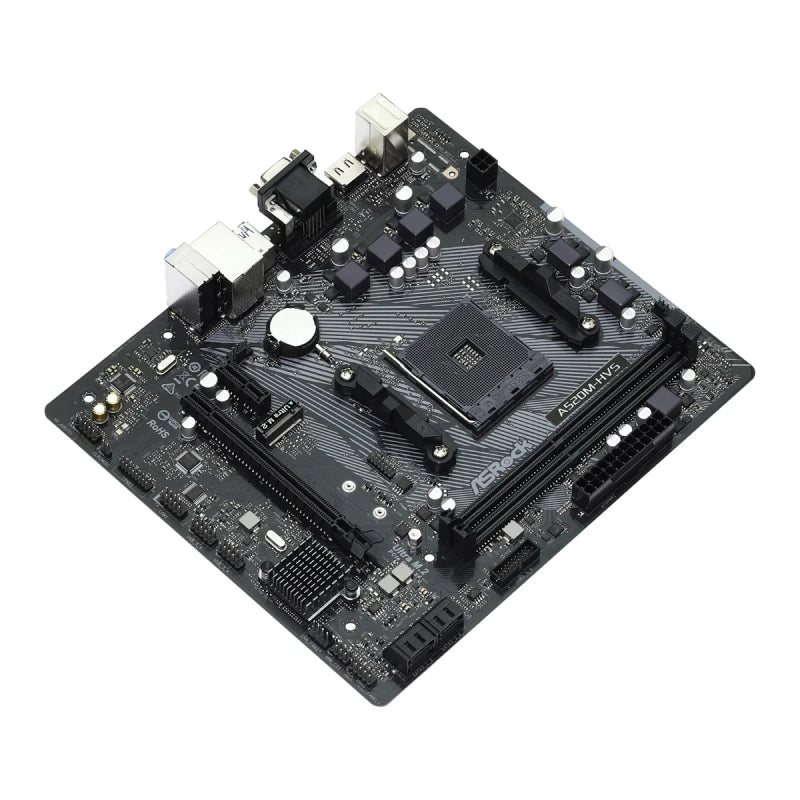

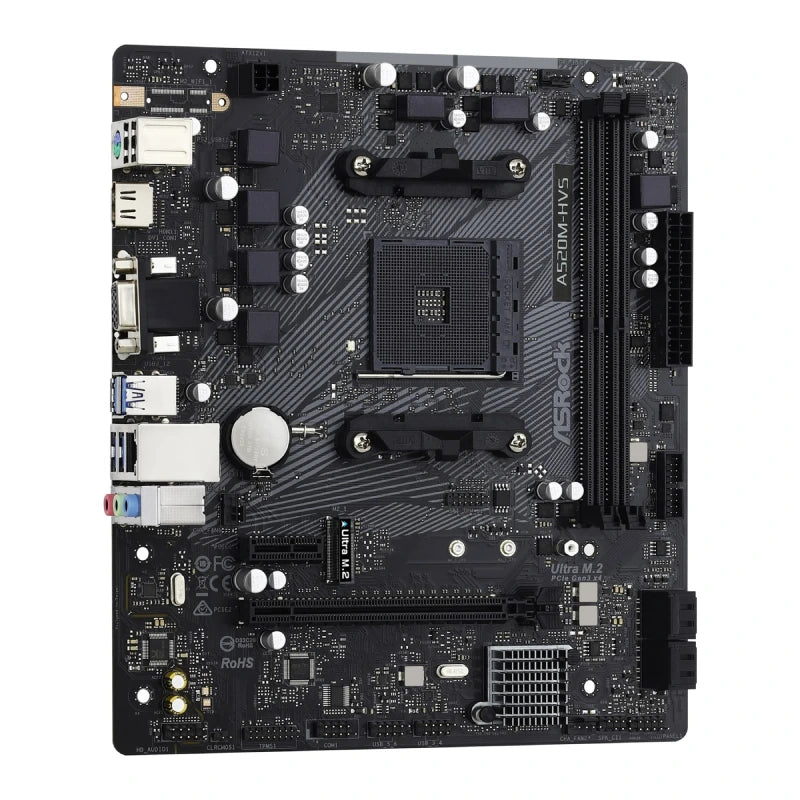

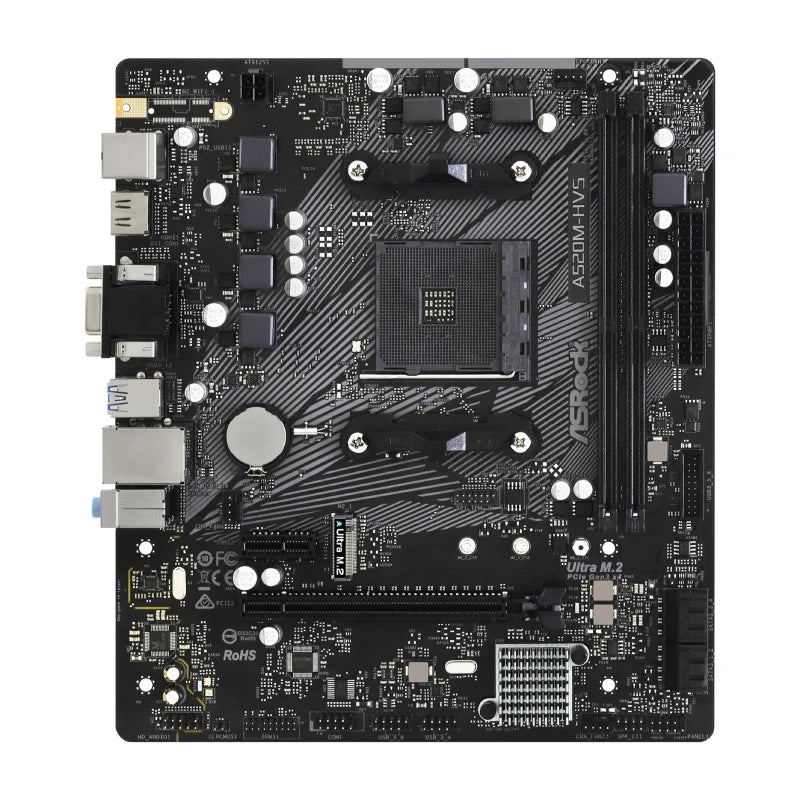

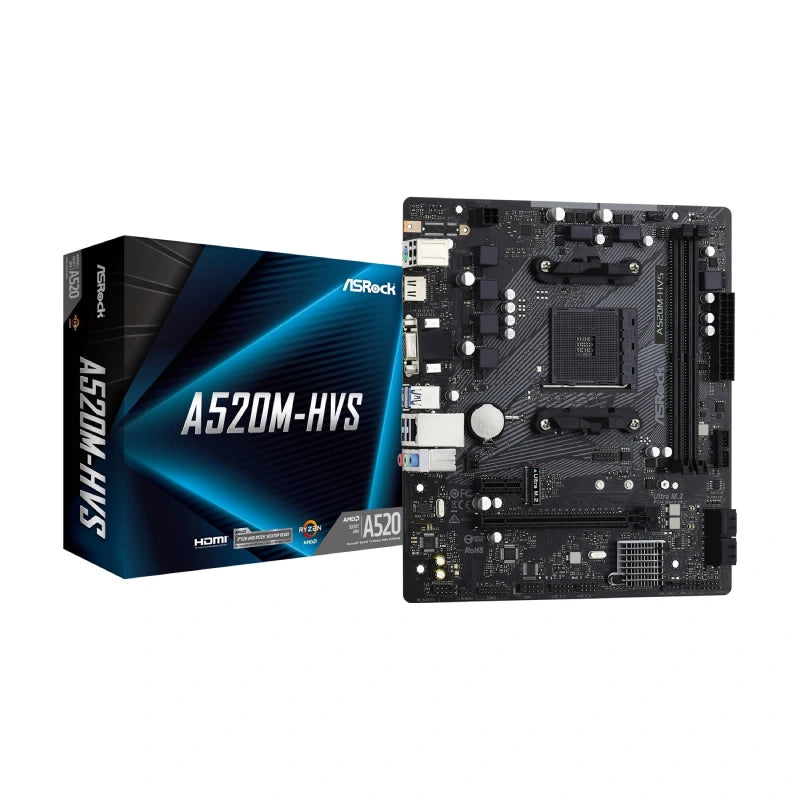

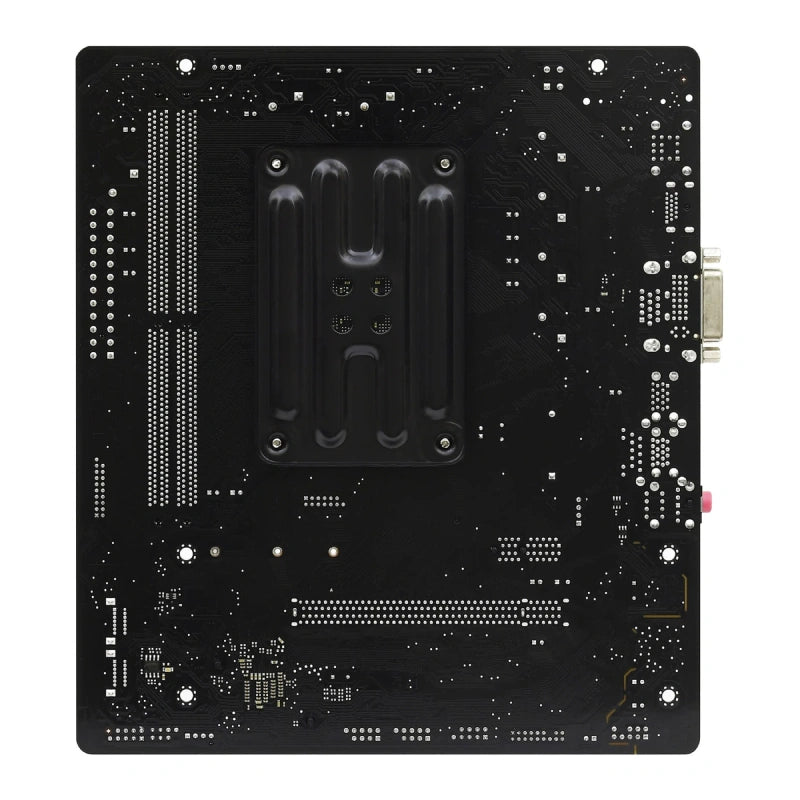

Asrock A520M-HVS AMD A520 Socket AM4 micro ATX
SKU: A520M-HVS
Ready to Order?
11 in stock
Excellent Condition
Best for general office work
In Stock - Delivery from tomorrow
-
Save money
Enjoy significant savings without compromising on quality.
-
Reduce waste
Reduce electronic waste and lower your carbon footprint.
-
Extensively tested
Every refurbished device is rigorously tested and repaired by certified technicians.
-
Warranty included
This device is protected with a warranty covering both parts and labour.
