| Form Factor | Midi Tower |
| Motherboard Support | ATX, Micro ATX, Mini ITX |
| PSU Support | Standard ATX |
| PSU Location | Bottom |
| Gaming Case | Yes |
| Water Cooling | Water Cooling Ready |
| Supported Radiator Size | 240mm |
| Supported Radiator Positions | Front, Top |
| Body Material | 0.5mm SPCC |
| Front Bezel Material | ABS |

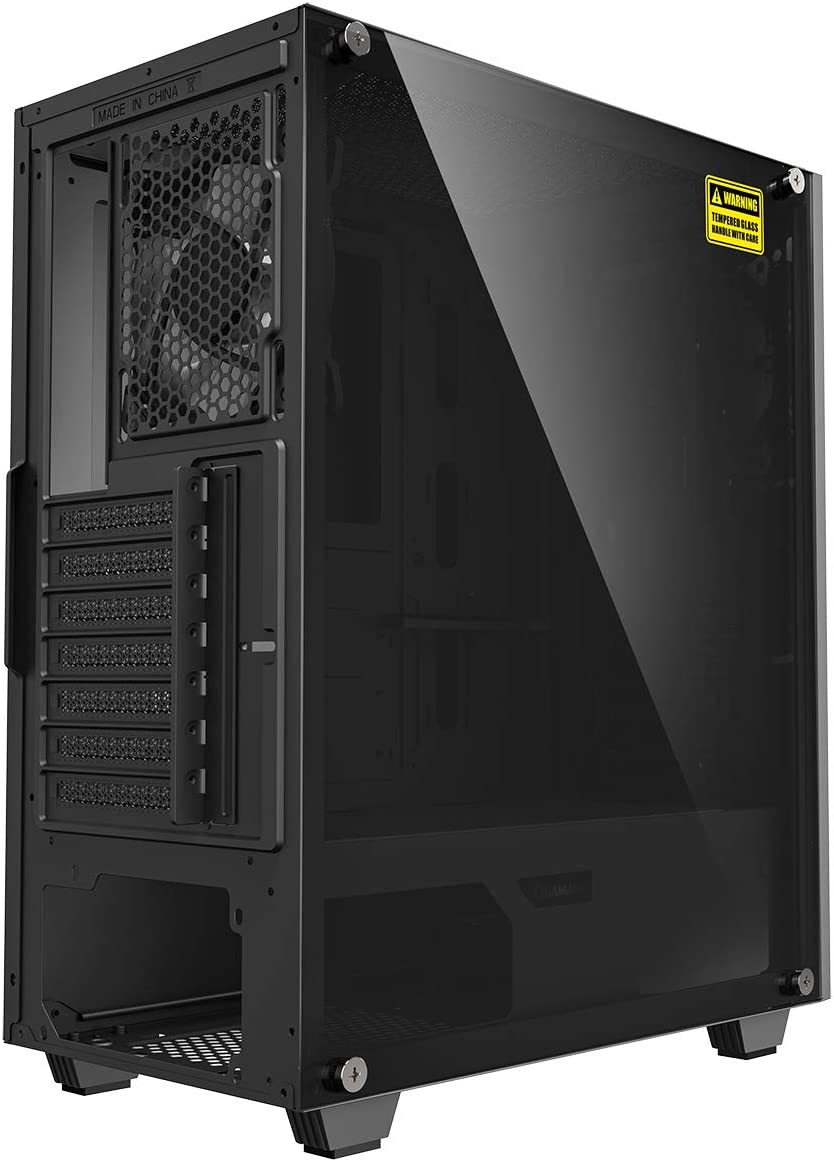

| Side Panel | Tempered Glass |

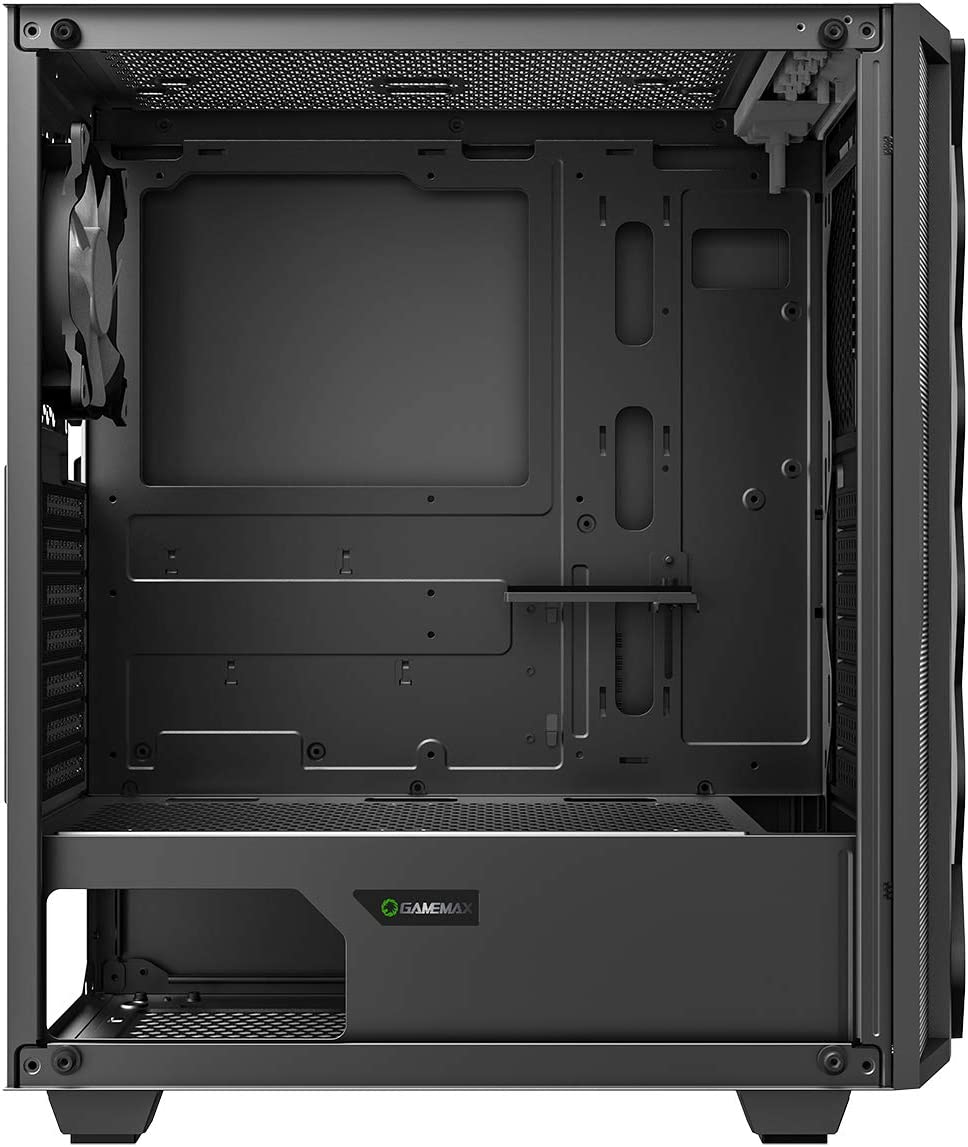

| Internal Cable Management Depth | 23mm |
| Internal Bays | 3 x 3.5? Internal, 2 x 2.5? Internal |

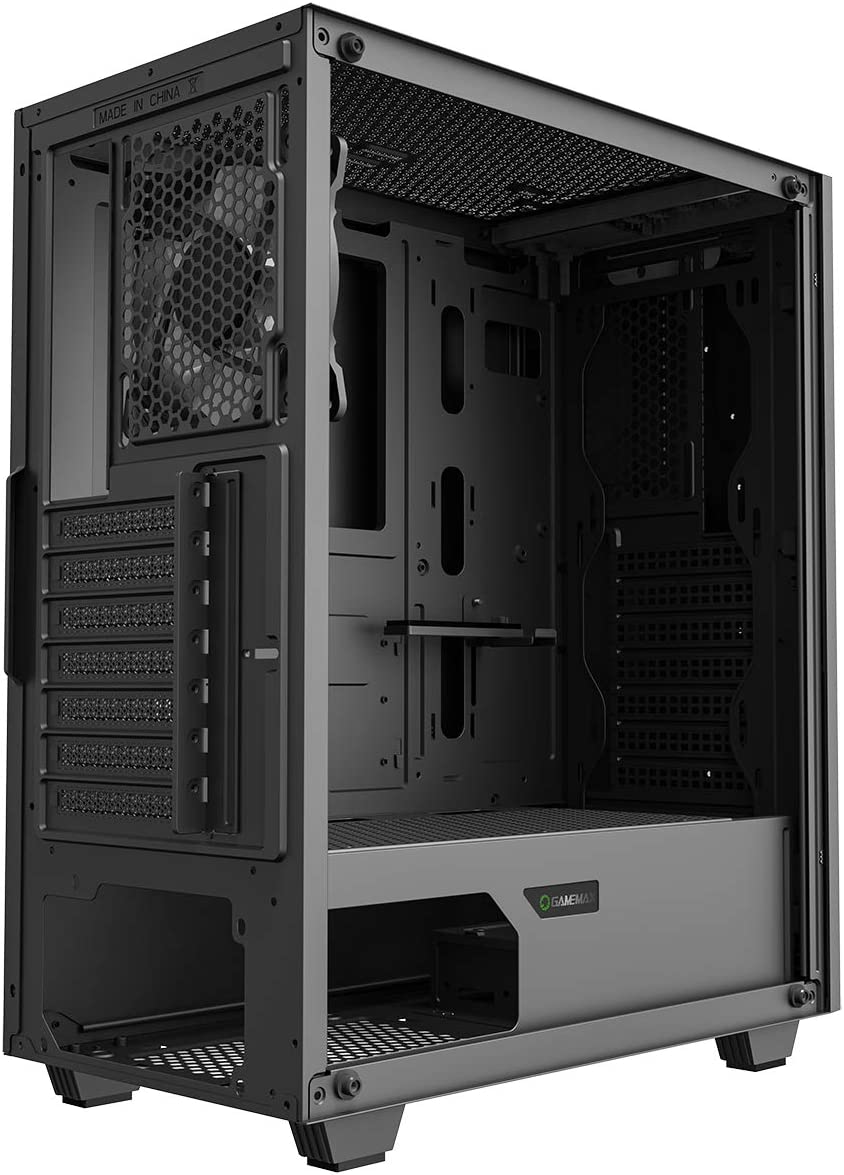

| Expansion Slots | 7 x Full Size |
| Cooling Front | Space For 3 x 120mm or 2 x 140mm Fans |
| Cooling Top | Space For 2 x 120mm or 2 x 140mm Fans |
| Cooling Rear | Space For 1 x 120mm Fan (1 x 120mm ARGB Fan Included) |
| Cooling Side | None |
| Cooling Bottom | Space For 2 x 120mm Fans |

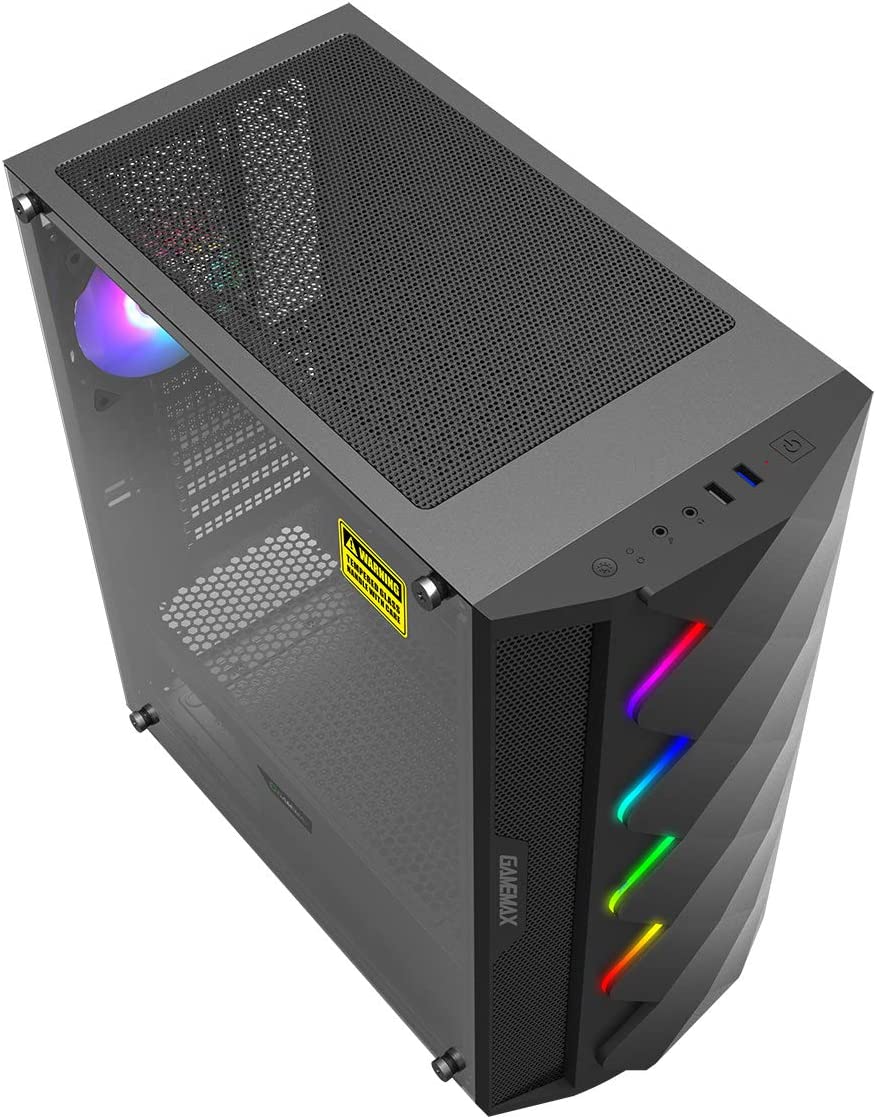

| IO Ports | 1 x USB 3.0, 1 x USB 2.0, 1 x HD Audio, 1 x Microphone |
| GPU Max Length | 340mm |
| CPU Cooler Maximum Height | 165mm |
| Chassis Dimensions (Excluding Fascia / Panels) | (W) 207 x (H) 465 x (D) 370mm |
| PSU max. Length (mm) | 210mm |
| PSU Shroud | Space For 2 x 120mm Fans |
| Rear Fan Powered Via | 3 Pin Fan Connector |

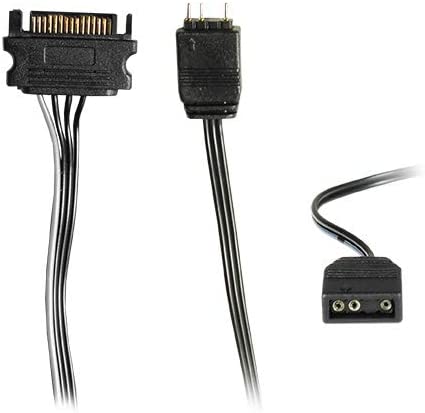

| Rear Fan LEDs Powered Via | 3 Pin ARGB |

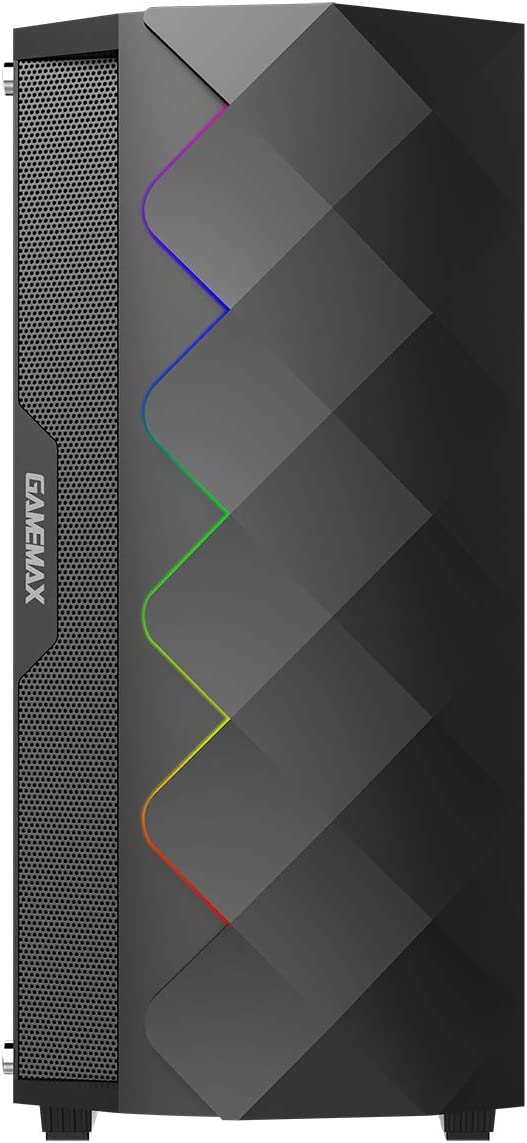

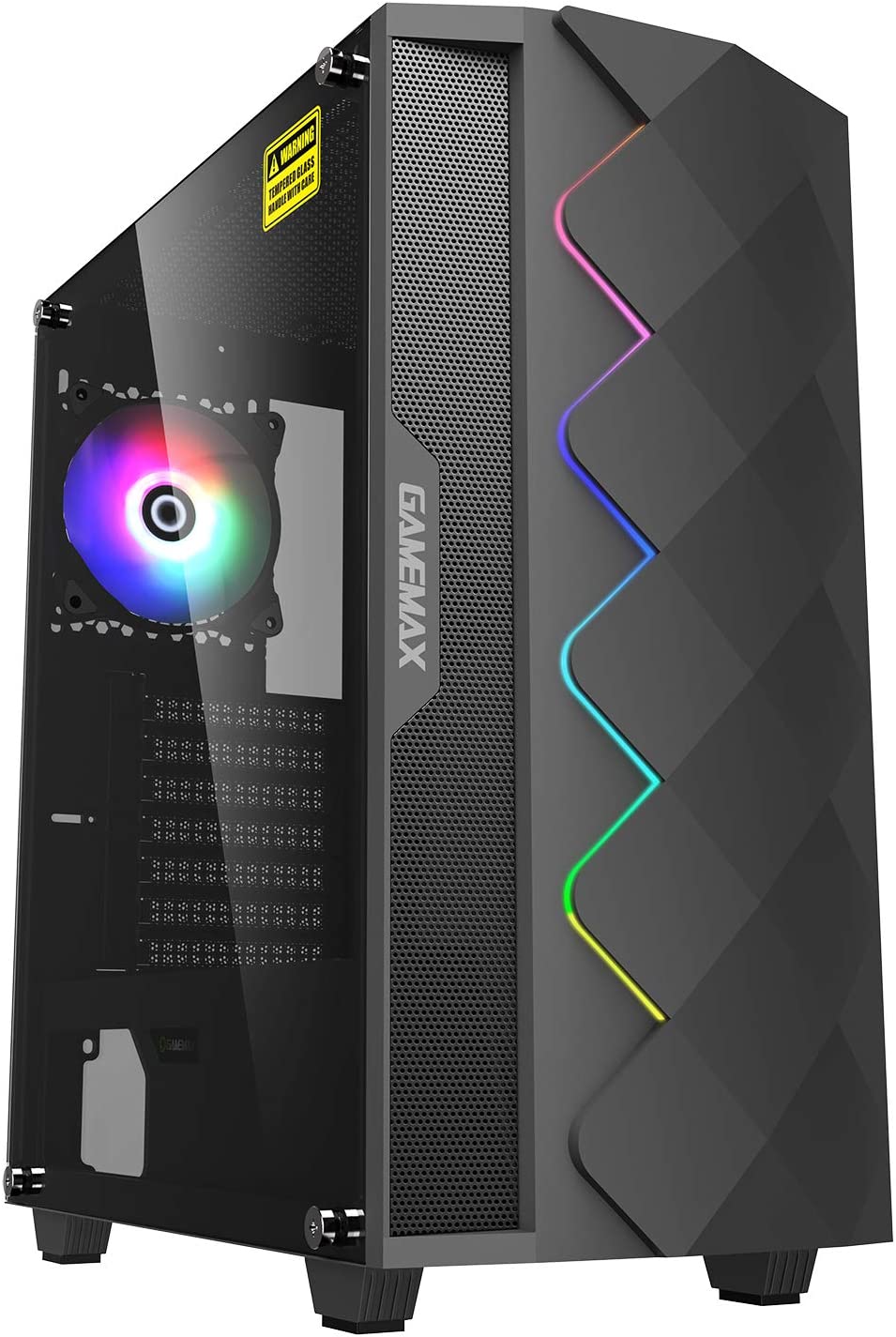

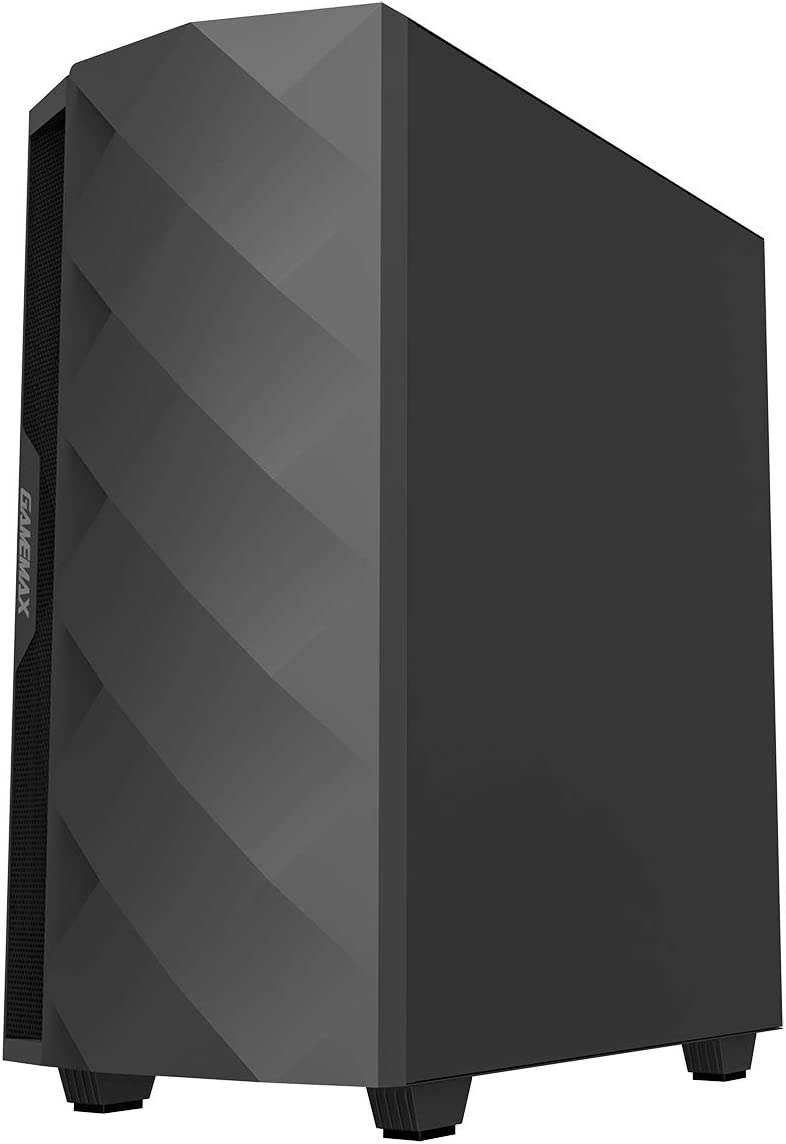

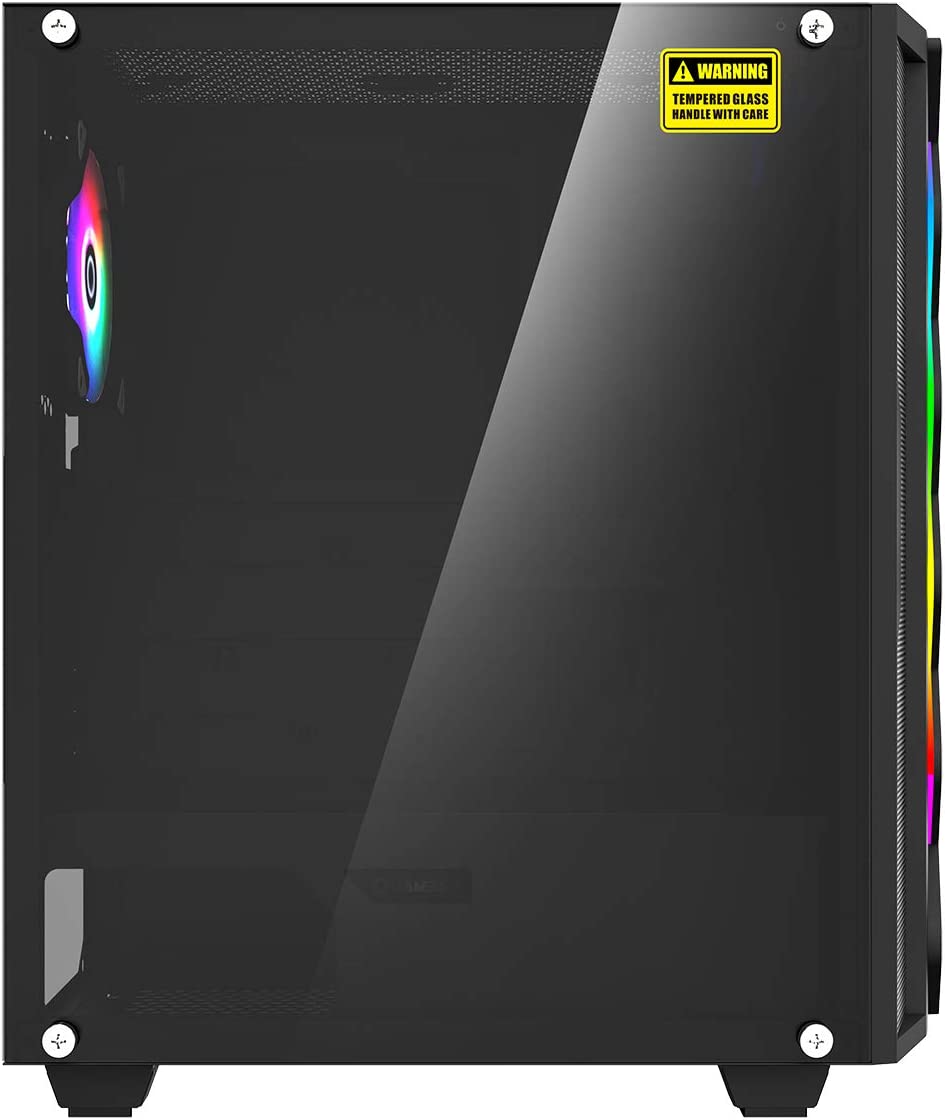

GAMEMAX Diamond ARGB Gaming Case w/ Glass Window ATX ARGB Strip & Angled Pattern Front Rear RGB Fan LED Button Black
SKU: CAA-GMXDIAMOND-B
